Koyo 46338A
(BRAND)：KOYO
(Availability)：In Stock
Specifications

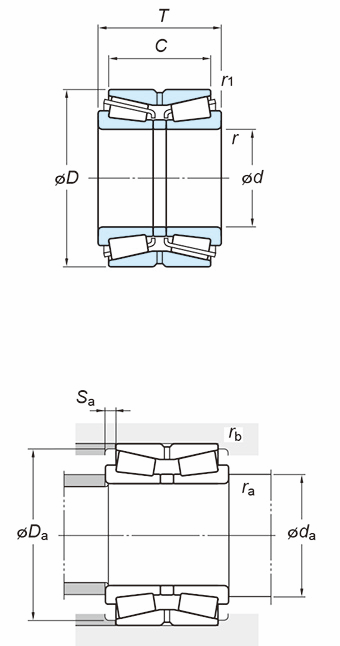

(Boundary dimensions ...etc)
d
190 mm
D
320 mm
T
130 mm
C
104 mm
r(min.)
4 mm
r1(min.)
1.5 mm
Basic load ratings : Cr
1230 kN
Basic load ratings : C0r
1860 kN
Fatigue load limit : Cu
212 kN
Limiting speeds(Grease lub.)
840 min-1
Limiting speeds(Oil lub.)
1100 min-1
Constant e
0.35
Axial load factors : Y2
1.95
Axial load factors : Y3
2.90
Axial load factors : Y0
1.91
Mounting dimensions
da(min.)
208 mm
Da(min.)
298 mm
Sa(min.)
13 mm
ra(max.)
3 mm
rb(max.)
1.5 mm
Refer.
(Refer.)Mass
39.0 kg
