Koyo 46396A
(BRAND)：KOYO
(Availability)：In Stock
Specifications

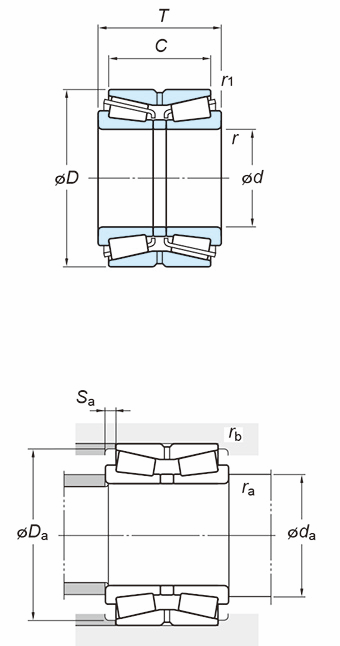

(Boundary dimensions ...etc)
d
480 mm
D
790 mm
T
310 mm
C
248 mm
r(min.)
7.5 mm
r1(min.)
4 mm
Basic load ratings : Cr
7530 kN
Basic load ratings : C0r
12400 kN
Fatigue load limit : Cu
1060 kN
Limiting speeds(Grease lub.)
230 min-1
Limiting speeds(Oil lub.)
310 min-1
Constant e
0.39
Axial load factors : Y2
1.74
Axial load factors : Y3
2.59
Axial load factors : Y0
1.70
Mounting dimensions
da(min.)
516 mm
Da(min.)
749 mm
Sa(min.)
31 mm
ra(max.)
6 mm
rb(max.)
3 mm
Refer.
(Refer.)Mass
560 kg
