Koyo 47T1429136
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

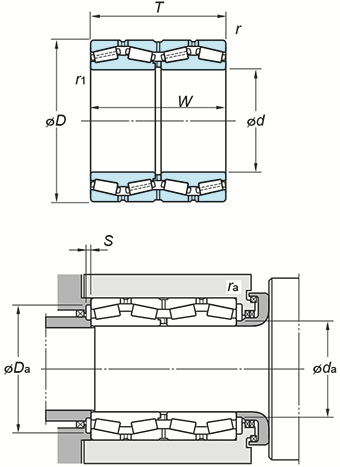

Specifications
(Boundary dimensions ...etc)
d
711.200 mm
D
914.400 mm
T
355.600 mm
W
355.600 mm
r(min.)
6.4 mm
r1(min.)
3.2 mm
Basic load ratings : Cr
8440 kN
Basic load ratings : C0r
21200 kN
Fatigue load limit : Cu
1780 kN
Axial load factors : Y2
1.78 mm
Axial load factors : Y3
2.65
Axial load factors : Y0
1.74
Constant e
0.38
Mounting dimensions
da(min.)
753 mm
Da(max.)
890 mm
Da(max.)
860 mm
S(min.)
10.5 mm
ra(max.)
6.4 mm
rb(max.)
3.2 mm
Axial load factors : Y2
1.78 mm
Axial load factors : Y3
2.65
Axial load factors : Y0
1.74
Constant e
0.38
Refer.
(Refer.)Mass
598 kg
