Koyo 47T211615
(BRAND)：KOYO
(Availability)：In Stock

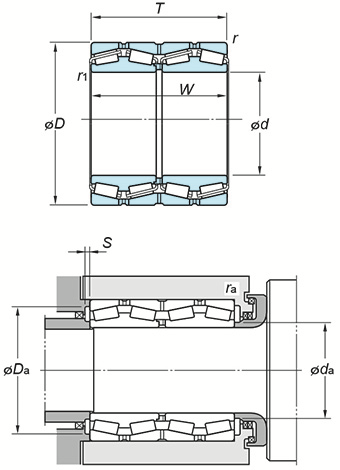

Specifications
(Boundary dimensions ...etc)
d
105 mm
D
160 mm
T
150 mm
W
150 mm
r(min.)
1.5 mm
r1(min.)
1 mm
Basic load ratings : Cr
805 kN
Basic load ratings : C0r
1420 kN
Fatigue load limit : Cu
208 kN
Axial load factors : Y2
2.03 mm
Axial load factors : Y3
3.02
Axial load factors : Y0
1.98
Constant e
0.33
Mounting dimensions
da(min.)
118 mm
Da(max.)
151.5 mm
Da(max.)
146 mm
S(min.)
5.9 mm
ra(max.)
1.5 mm
rb(max.)
1 mm
Axial load factors : Y2
2.03 mm
Axial load factors : Y3
3.02
Axial load factors : Y0
1.98
Constant e
0.33
Refer.
(Refer.)Mass
10.6 kg
