Koyo 47T362519
(BRAND)：KOYO
(Availability)：In Stock

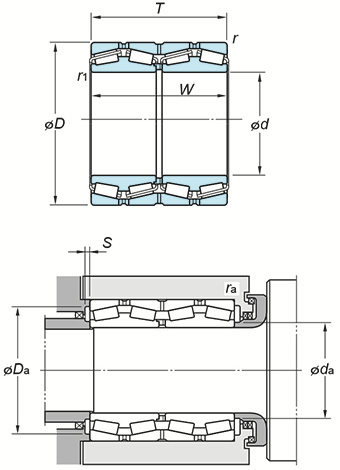

Specifications
(Boundary dimensions ...etc)
d
180 mm
D
250 mm
T
185 mm
W
185 mm
r(min.)
2.5 mm
r1(min.)
3 mm
Basic load ratings : Cr
1230 kN
Basic load ratings : C0r
2550 kN
Fatigue load limit : Cu
326 kN
Axial load factors : Y2
2.03 mm
Axial load factors : Y3
3.02
Axial load factors : Y0
1.98
Constant e
0.33
Mounting dimensions
da(min.)
198 mm
Da(max.)
238 mm
Da(max.)
228 mm
S(min.)
6 mm
ra(max.)
2 mm
rb(max.)
2.5 mm
Axial load factors : Y2
2.03 mm
Axial load factors : Y3
3.02
Axial load factors : Y0
1.98
Constant e
0.33
Refer.
(Refer.)Mass
26.9 kg
