Koyo 47T372721B
(BRAND)：KOYO
(Availability)：In Stock
Specifications

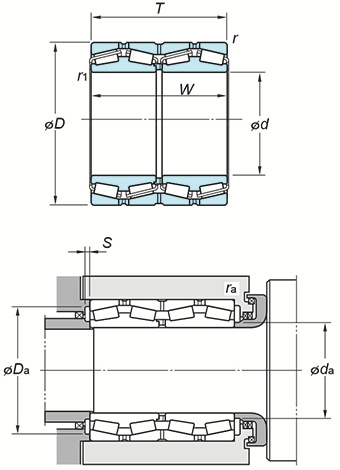

(Boundary dimensions ...etc)
d
187 mm
D
270 mm
T
210 mm
W
210 mm
r(min.)
2.5 mm
r1(min.)
1 mm
Basic load ratings : Cr
1780 kN
Basic load ratings : C0r
3570 kN
Fatigue load limit : Cu
409 kN
Axial load factors : Y2
2.03 mm
Axial load factors : Y3
3.02
Axial load factors : Y0
1.98
Constant e
0.33
Mounting dimensions
da(min.)
205 mm
Da(max.)
258 mm
Da(max.)
248 mm
S(min.)
8 mm
ra(max.)
2 mm
rb(max.)
1 mm
Axial load factors : Y2
2.03 mm
Axial load factors : Y3
3.02
Axial load factors : Y0
1.98
Constant e
0.33
Refer.
(Refer.)Mass
39.1 kg
