Koyo 47T564029A
(BRAND)：KOYO
(Availability)：In Stock
Specifications

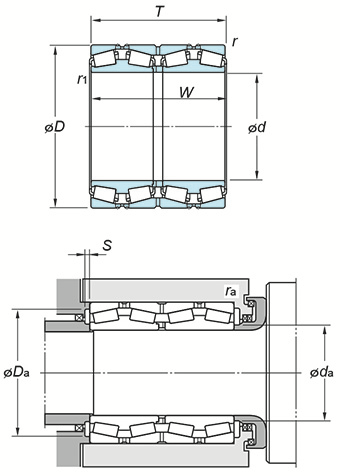

(Boundary dimensions ...etc)
d
280 mm
D
395 mm
T
288 mm
W
288 mm
r(min.)
4 mm
r1(min.)
2 mm
Basic load ratings : Cr
3090 kN
Basic load ratings : C0r
6900 kN
Fatigue load limit : Cu
702 kN
Axial load factors : Y2
1.68 mm
Axial load factors : Y3
2.50
Axial load factors : Y0
1.64
Constant e
0.40
Mounting dimensions
da(min.)
303 mm
Da(max.)
377 mm
Da(max.)
363 mm
S(min.)
8 mm
ra(max.)
3 mm
rb(max.)
2 mm
Axial load factors : Y2
1.68 mm
Axial load factors : Y3
2.50
Axial load factors : Y0
1.64
Constant e
0.40
Refer.
(Refer.)Mass
110 kg
