Koyo 47T564131
(BRAND)：KOYO
(Availability)：In Stock

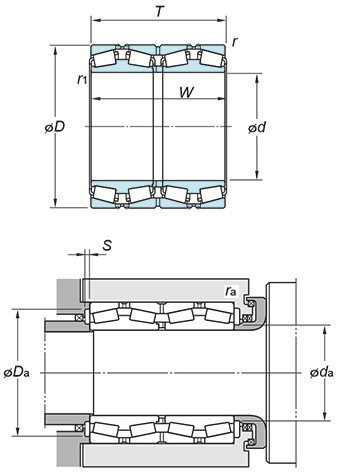

Specifications
(Boundary dimensions ...etc)
d
279.400 mm
D
410.000 mm
T
310.000 mm
W
310.000 mm
r(min.)
6.4 mm
r1(min.)
1.6 mm
Basic load ratings : Cr
3350 kN
Basic load ratings : C0r
7290 kN
Fatigue load limit : Cu
745 kN
Axial load factors : Y2
1.68 mm
Axial load factors : Y3
2.50
Axial load factors : Y0
1.64
Constant e
0.40
Mounting dimensions
da(min.)
308 mm
Da(max.)
389 mm
Da(max.)
374 mm
S(min.)
8 mm
ra(max.)
6.4 mm
rb(max.)
1.6 mm
Axial load factors : Y2
1.68 mm
Axial load factors : Y3
2.50
Axial load factors : Y0
1.64
Constant e
0.40
Refer.
(Refer.)Mass
140 kg
