Koyo 47T674634/DP
(BRAND)：KOYO
(Availability)：In Stock
Specifications

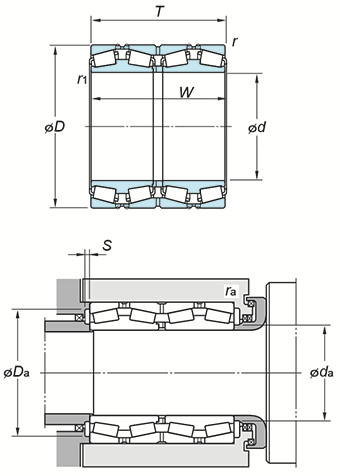

(Boundary dimensions ...etc)
d
335.000 mm
D
460.000 mm
T
342.900 mm
W
342.900 mm
r(min.)
3.2 mm
r1(min.)
1.6 mm
Basic load ratings : Cr
4250 kN
Basic load ratings : C0r
9390 kN
Fatigue load limit : Cu
922 kN
Axial load factors : Y2
1.68 mm
Axial load factors : Y3
2.50
Axial load factors : Y0
1.64
Constant e
0.40
Mounting dimensions
da(min.)
361 mm
Da(max.)
445 mm
Da(max.)
428 mm
S(min.)
7.5 mm
ra(max.)
3.2 mm
rb(max.)
1.6 mm
Axial load factors : Y2
1.68 mm
Axial load factors : Y3
2.50
Axial load factors : Y0
1.64
Constant e
0.40
Refer.
(Refer.)Mass
165 kg
