Koyo 47T805930A
(BRAND)：KOYO
(Availability)：In Stock
Specifications

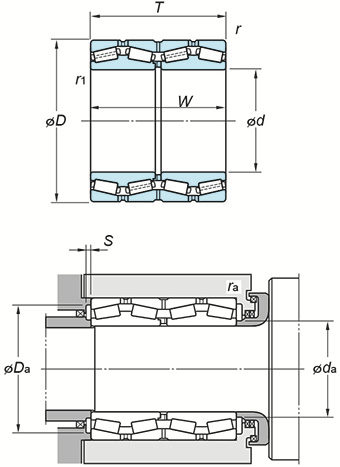

(Boundary dimensions ...etc)
d
400 mm
D
590 mm
T
304 mm
W
304 mm
r(min.)
4 mm
r1(min.)
1.5 mm
Basic load ratings : Cr
5110 kN
Basic load ratings : C0r
10200 kN
Fatigue load limit : Cu
997 kN
Axial load factors : Y2
2.03 mm
Axial load factors : Y3
3.02
Axial load factors : Y0
1.98
Constant e
0.33
Mounting dimensions
da(min.)
449 mm
Da(max.)
572 mm
Da(max.)
540 mm
S(min.)
7.5 mm
ra(max.)
3 mm
rb(max.)
1.5 mm
Axial load factors : Y2
2.03 mm
Axial load factors : Y3
3.02
Axial load factors : Y0
1.98
Constant e
0.33
Refer.
(Refer.)Mass
289 kg
