Koyo 48FC33220
(BRAND)：KOYO
(Availability)：In Stock
Specifications

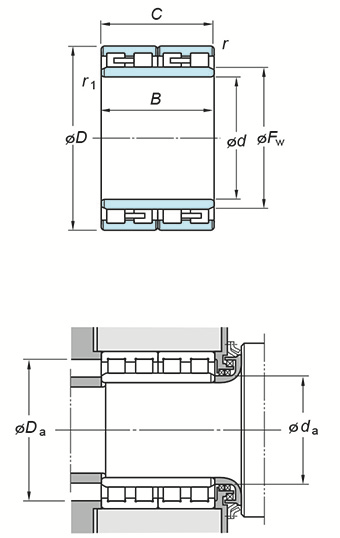

(Boundary dimensions ...etc)
d
240 mm
D
330 mm
B
220 mm
C
220 mm
Fw
264 mm
r(min.)
2.1 mm
r1(min.)
2.1 mm
Basic load ratings : Cr
1970 kN
Basic load ratings : C0r
4120 kN
Fatigue load limit : Cu
462 kN
Mounting dimensions
da(min.)
252 mm
Da(max.)
318 mm
da(min.)
308 mm
ra(max.)
2 mm
rb(max.)
2 mm
Refer.
(Refer.)Mass
54.3 kg
