Koyo 48FC33220BW
(BRAND)：KOYO
(Availability)：In Stock
Specifications

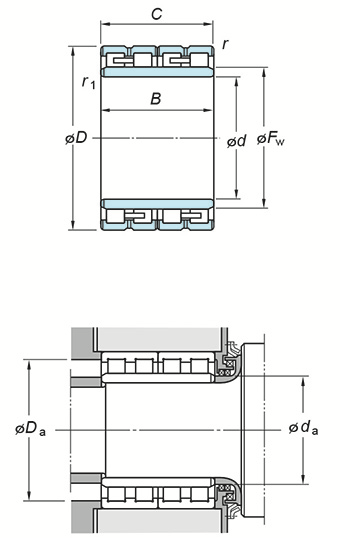

(Boundary dimensions ...etc)
d
240 mm
D
330 mm
B
220 mm
C
220 mm
Fw
268 mm
r(min.)
3 mm
r1(min.)
3 mm
Basic load ratings : Cr
1900 kN
Basic load ratings : C0r
4070 kN
Fatigue load limit : Cu
454 kN
Mounting dimensions
da(min.)
254 mm
Da(max.)
316 mm
da(min.)
310 mm
ra(max.)
2.5 mm
rb(max.)
2.5 mm
Refer.
(Refer.)Mass
55.5 kg
