Koyo 4TR500B
(BRAND)：KOYO
(Availability)：In Stock
Specifications

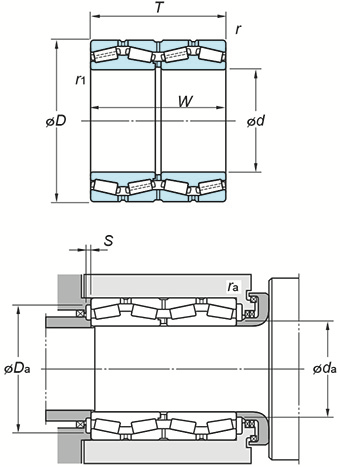

(Boundary dimensions ...etc)
d
500 mm
D
670 mm
T
515 mm
W
515 mm
r(min.)
5 mm
r1(min.)
6 mm
Basic load ratings : Cr
9760 kN
Basic load ratings : C0r
25700 kN
Fatigue load limit : Cu
2160 kN
Axial load factors : Y2
2.12 mm
Axial load factors : Y3
3.15
Axial load factors : Y0
2.07
Constant e
0.32
Mounting dimensions
da(min.)
530 mm
Da(max.)
648 mm
Da(max.)
626 mm
S(min.)
11 mm
ra(max.)
4 mm
rb(max.)
5 mm
Axial load factors : Y2
2.12 mm
Axial load factors : Y3
3.15
Axial load factors : Y0
2.07
Constant e
0.32
Refer.
(Refer.)Mass
510 kg
