Koyo 4TR500J
(BRAND)：KOYO
(Availability)：In Stock

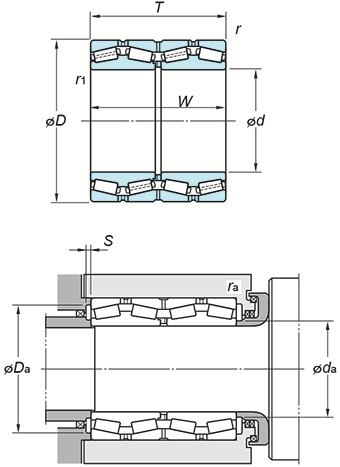

Specifications
(Boundary dimensions ...etc)
d
500 mm
D
720 mm
T
400 mm
W
400 mm
r(min.)
6 mm
r1(min.)
6 mm
Basic load ratings : Cr
8580 kN
Basic load ratings : C0r
18700 kN
Fatigue load limit : Cu
1680 kN
Axial load factors : Y2
2.03 mm
Axial load factors : Y3
3.02
Axial load factors : Y0
1.98
Constant e
0.33
Mounting dimensions
da(min.)
552 mm
Da(max.)
692 mm
Da(max.)
663 mm
S(min.)
12.5 mm
ra(max.)
5 mm
rb(max.)
5 mm
Axial load factors : Y2
2.03 mm
Axial load factors : Y3
3.02
Axial load factors : Y0
1.98
Constant e
0.33
Refer.
(Refer.)Mass
547 kg
