Koyo 4TR500Q
(BRAND)：KOYO
(Availability)：In Stock
Specifications

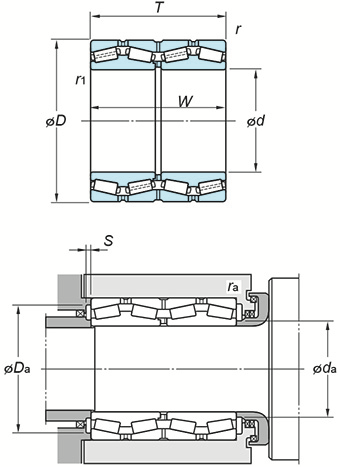

(Boundary dimensions ...etc)
d
500 mm
D
760 mm
T
420 mm
W
420 mm
r(min.)
2 mm
r1(min.)
6 mm
Basic load ratings : Cr
9400 kN
Basic load ratings : C0r
19300 kN
Fatigue load limit : Cu
1730 kN
Axial load factors : Y2
1.74 mm
Axial load factors : Y3
2.59
Axial load factors : Y0
1.70
Constant e
0.39
Mounting dimensions
da(min.)
566 mm
Da(max.)
750 mm
Da(max.)
696 mm
S(min.)
11.5 mm
ra(max.)
2 mm
rb(max.)
6 mm
Axial load factors : Y2
1.74 mm
Axial load factors : Y3
2.59
Axial load factors : Y0
1.70
Constant e
0.39
Refer.
(Refer.)Mass
698 kg
