Koyo 4TR530-1
(BRAND)：KOYO
(Availability)：In Stock
Specifications

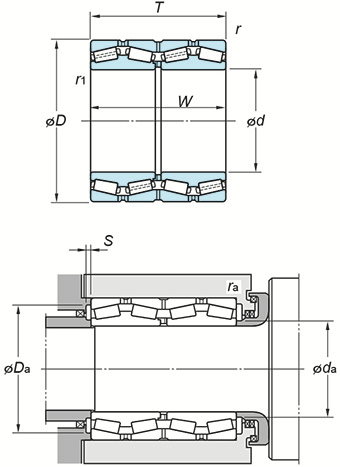

(Boundary dimensions ...etc)
d
530 mm
D
730 mm
T
540 mm
W
535 mm
r(min.)
5 mm
r1(min.)
SP mm
Basic load ratings : Cr
10900 kN
Basic load ratings : C0r
27900 kN
Fatigue load limit : Cu
2310 kN
Axial load factors : Y2
1.96 mm
Axial load factors : Y3
2.92
Axial load factors : Y0
1.92
Constant e
0.34
Mounting dimensions
da(min.)
570 mm
Da(max.)
708 mm
Da(max.)
677 mm
S(min.)
9 mm
ra(max.)
4 mm
rb(max.)
3 mm
Axial load factors : Y2
1.96 mm
Axial load factors : Y3
2.92
Axial load factors : Y0
1.92
Constant e
0.34
Refer.
(Refer.)Mass
686 kg
