Koyo 4TR550C
(BRAND)：KOYO
(Availability)：In Stock
Specifications

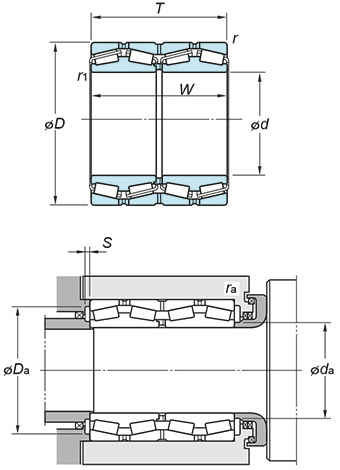

(Boundary dimensions ...etc)
d
550 mm
D
685 mm
T
350 mm
W
350 mm
r(min.)
4 mm
r1(min.)
1.5 mm
Basic load ratings : Cr
5680 kN
Basic load ratings : C0r
16100 kN
Fatigue load limit : Cu
1390 kN
Axial load factors : Y2
2.32 mm
Axial load factors : Y3
3.45
Axial load factors : Y0
2.26
Constant e
0.29
Mounting dimensions
da(min.)
579 mm
Da(max.)
667 mm
Da(max.)
647 mm
S(min.)
8 mm
ra(max.)
3 mm
rb(max.)
1.5 mm
Axial load factors : Y2
2.32 mm
Axial load factors : Y3
3.45
Axial load factors : Y0
2.26
Constant e
0.29
Refer.
(Refer.)Mass
287 kg
