Koyo 4TR555
(BRAND)：KOYO
(Availability)：In Stock
Specifications

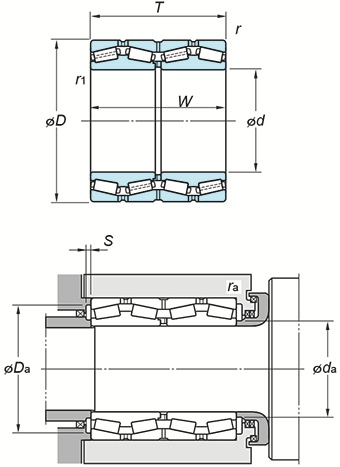

(Boundary dimensions ...etc)
d
555.625 mm
D
698.500 mm
T
349.250 mm
W
349.250 mm
r(min.)
6.4 mm
r1(min.)
3.2 mm
Basic load ratings : Cr
6140 kN
Basic load ratings : C0r
17000 kN
Fatigue load limit : Cu
1470 kN
Axial load factors : Y2
2.03 mm
Axial load factors : Y3
3.02
Axial load factors : Y0
1.98
Constant e
0.33
Mounting dimensions
da(min.)
586 mm
Da(max.)
675 mm
Da(max.)
655 mm
S(min.)
9.5 mm
ra(max.)
6.4 mm
rb(max.)
3.2 mm
Axial load factors : Y2
2.03 mm
Axial load factors : Y3
3.02
Axial load factors : Y0
1.98
Constant e
0.33
Refer.
(Refer.)Mass
312 kg
