Koyo 51105
(BRAND)：KOYO
(Availability)：In Stock
Specifications

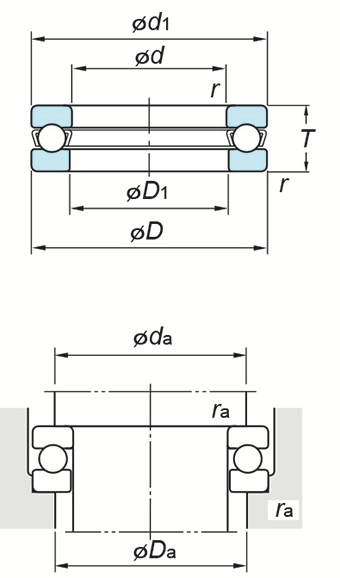

(Boundary dimensions ...etc)
d
25 mm
D
42 mm
T
11 mm
r(min.)
0.6 mm
Basic load ratings Ca
24.4 kN
Basic load ratings C0a
37.2 kN
Fatigue load limit : Cu
1.70 kN
Limiting speeds(Grease lub.)
4400 min-1
Limiting speeds(Oil lub.)
6800 min-1
d1(max.)
42 mm
D1(min.)
26 mm
D2
- mm
D3
- mm
A
- mm
R
- mm
C
- mm
Mounting dimensions
da(min.)
35 mm
Da(max.)
32 mm
ra(max.)
0.6 mm
Refer.
(Refer.)Mass
0.059 kg
