Koyo 51111
(BRAND)：KOYO
(Availability)：In Stock
Specifications

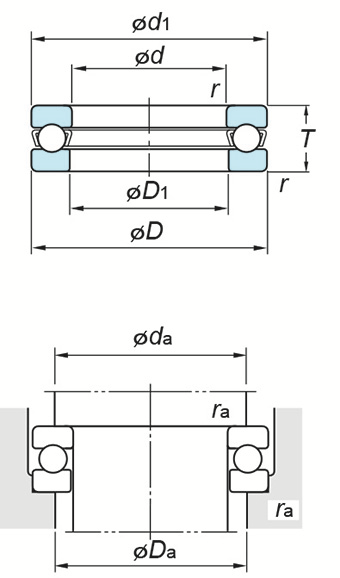

(Boundary dimensions ...etc)
d
55 mm
D
78 mm
T
16 mm
r(min.)
0.6 mm
Basic load ratings Ca
43.5 kN
Basic load ratings C0a
93.1 kN
Fatigue load limit : Cu
4.20 kN
Limiting speeds(Grease lub.)
2800 min-1
Limiting speeds(Oil lub.)
4300 min-1
d1(max.)
78 mm
D1(min.)
57 mm
D2
- mm
D3
- mm
A
- mm
R
- mm
C
- mm
Mounting dimensions
da(min.)
69 mm
Da(max.)
64 mm
ra(max.)
0.6 mm
Refer.
(Refer.)Mass
0.240 kg
