Koyo 51130
(BRAND)：KOYO
(Availability)：In Stock
Specifications

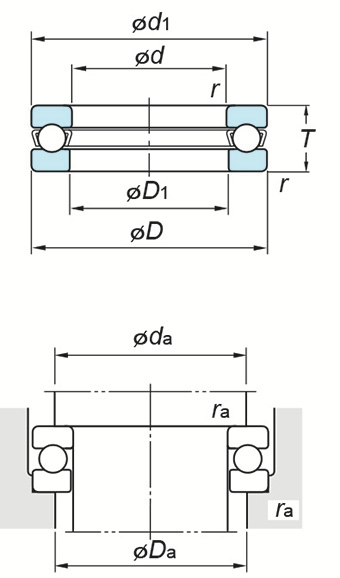

(Boundary dimensions ...etc)
d
150 mm
D
190 mm
T
31 mm
r(min.)
1 mm
Basic load ratings Ca
137 kN
Basic load ratings C0a
400 kN
Fatigue load limit : Cu
13.9 kN
Limiting speeds(Grease lub.)
1200 min-1
Limiting speeds(Oil lub.)
1900 min-1
d1(max.)
188 mm
D1(min.)
152 mm
D2
- mm
D3
- mm
A
- mm
R
- mm
C
- mm
Mounting dimensions
da(min.)
174 mm
Da(max.)
166 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
2.15 kg
