Koyo 51160
(BRAND)：KOYO
(Availability)：In Stock
Specifications

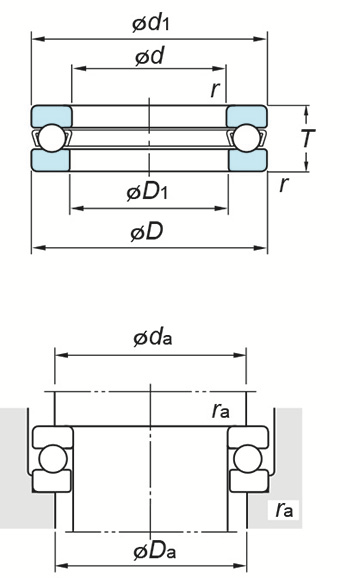

(Boundary dimensions ...etc)
d
300 mm
D
380 mm
T
62 mm
r(min.)
2 mm
Basic load ratings Ca
454 kN
Basic load ratings C0a
1610 kN
Fatigue load limit : Cu
39.4 kN
Limiting speeds(Grease lub.)
540 min-1
Limiting speeds(Oil lub.)
810 min-1
d1(max.)
376 mm
D1(min.)
304 mm
D2
- mm
D3
- mm
A
- mm
R
- mm
C
- mm
Mounting dimensions
da(min.)
348 mm
Da(max.)
332 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
17.5 kg
