Koyo 51172
(BRAND)：KOYO
(Availability)：In Stock
Specifications

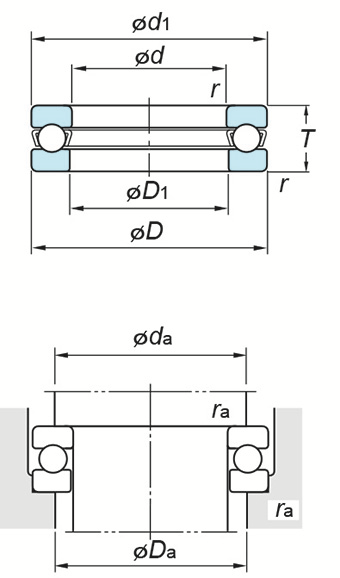

(Boundary dimensions ...etc)
d
360 mm
D
440 mm
T
65 mm
r(min.)
2 mm
Basic load ratings Ca
493 kN
Basic load ratings C0a
1960 kN
Fatigue load limit : Cu
44.3 kN
Limiting speeds(Grease lub.)
500 min-1
Limiting speeds(Oil lub.)
720 min-1
d1(max.)
436 mm
D1(min.)
364 mm
D2
- mm
D3
- mm
A
- mm
R
- mm
C
- mm
Mounting dimensions
da(min.)
408 mm
Da(max.)
392 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
21.5 kg
