Koyo 51330
(BRAND)：KOYO
(Availability)：In Stock
Specifications

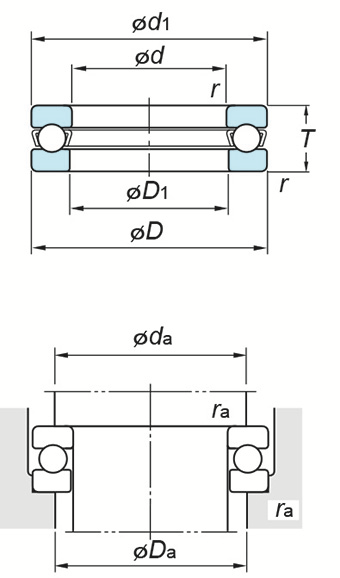

(Boundary dimensions ...etc)
d
150 mm
D
250 mm
T
80 mm
r(min.)
2.1 mm
Basic load ratings Ca
451 kN
Basic load ratings C0a
1130 kN
Fatigue load limit : Cu
36.0 kN
Limiting speeds(Grease lub.)
580 min-1
Limiting speeds(Oil lub.)
900 min-1
d1(max.)
245 mm
D1(min.)
154 mm
D2
- mm
D3
- mm
A
- mm
R
- mm
C
- mm
Mounting dimensions
da(min.)
209 mm
Da(max.)
191 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
16.3 kg
