Koyo 5205 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

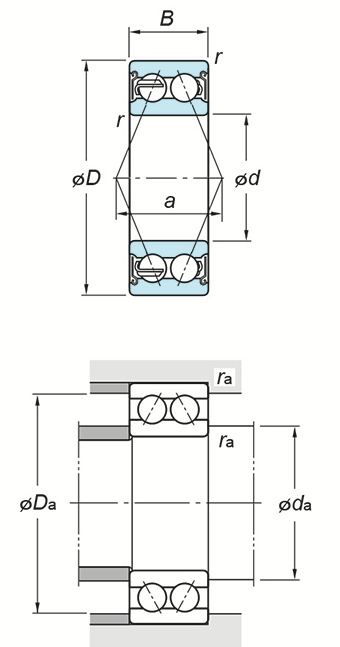

(Boundary dimensions ...etc)
d
25 mm
D
52 mm
B
20.6 mm
r(min.)
1 mm
Basic load ratings : Cr
23.6 kN
Basic load ratings : C0r
13.8 kN
Fatigue load limit : Cu
0.710 kN
Limiting speeds(Grease lub.)
7700 min-1
Limiting speeds(Oil lub.)
10000 min-1
Load center spread : a
26.1 mm
Mounting dimensions
da(min.)
31 mm
da(max.)
32.3 mm
Da(max.)
46.5 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.190 kg
