Koyo 5206 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

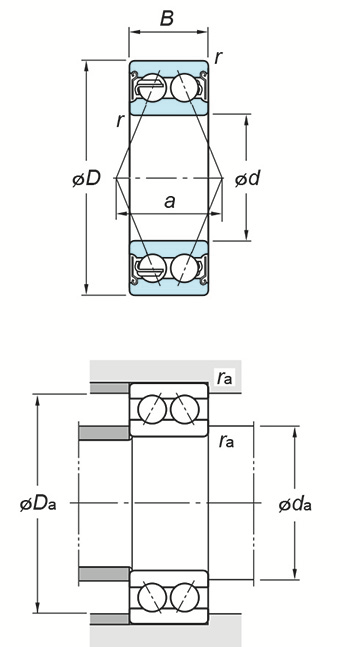

(Boundary dimensions ...etc)
d
30 mm
D
62 mm
B
23.8 mm
r(min.)
1 mm
Basic load ratings : Cr
31.7 kN
Basic load ratings : C0r
18.3 kN
Fatigue load limit : Cu
0.950 kN
Limiting speeds(Grease lub.)
6400 min-1
Limiting speeds(Oil lub.)
8600 min-1
Load center spread : a
30.8 mm
Mounting dimensions
da(min.)
36 mm
da(max.)
38.6 mm
Da(max.)
56.5 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.290 kg
