Koyo 5207 2RS
(BRAND)：KOYO
(Availability)：In Stock

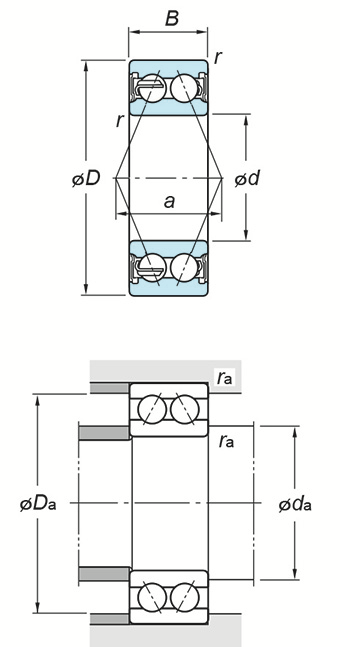

Specifications
(Boundary dimensions ...etc)
d
35 mm
D
72 mm
B
27 mm
r(min.)
1.1 mm
Basic load ratings : Cr
39.7 kN
Basic load ratings : C0r
24.6 kN
Fatigue load limit : Cu
1.25 kN
Limiting speeds(Grease lub.)
5500 min-1
Limiting speeds(Oil lub.)
7300 min-1
Load center spread : a
36.1 mm
Mounting dimensions
da(min.)
42 mm
da(max.)
43.9 mm
Da(max.)
65 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.430 kg
