Koyo 5210 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

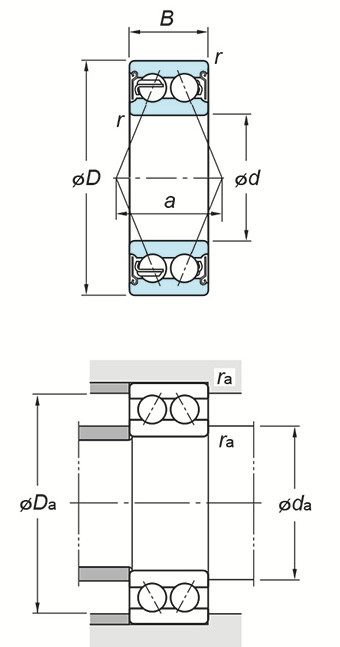

(Boundary dimensions ...etc)
d
50 mm
D
90 mm
B
30.2 mm
r(min.)
1.1 mm
Basic load ratings : Cr
55.2 kN
Basic load ratings : C0r
37.9 kN
Fatigue load limit : Cu
1.95 kN
Limiting speeds(Grease lub.)
4300 min-1
Limiting speeds(Oil lub.)
5600 min-1
Load center spread : a
44.5 mm
Mounting dimensions
da(min.)
57 mm
da(max.)
58.9 mm
Da(max.)
83 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.670 kg
