Koyo 5211
(BRAND)：KOYO
(Availability)：In Stock
Specifications

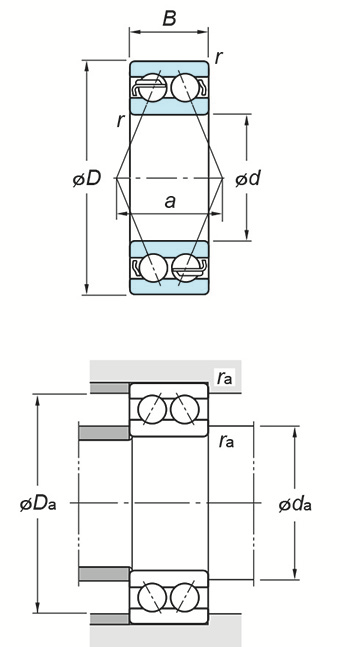

(Boundary dimensions ...etc)
d
55 mm
D
100 mm
B
33.3 mm
r(min.)
1.5 mm
Basic load ratings : Cr
82.3 kN
Basic load ratings : C0r
55.2 kN
Fatigue load limit : Cu
2.85 kN
Limiting speeds(Grease lub.)
3800 min-1
Limiting speeds(Oil lub.)
5100 min-1
Load center spread : a
50.2 mm
Mounting dimensions
da(min.)
64 mm
da(max.)
- mm
Da(max.)
91.5 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
0.960 kg
