Koyo 5213
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

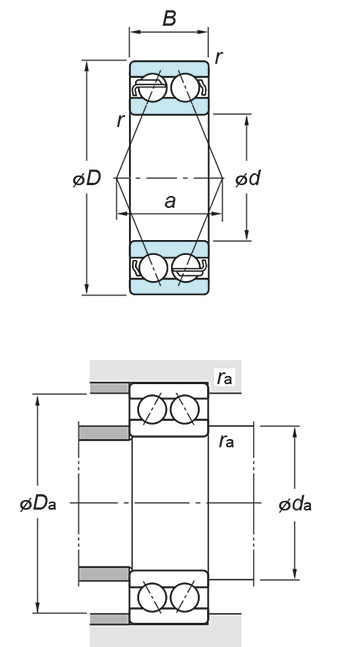

(Boundary dimensions ...etc)
d
65 mm
D
120 mm
B
38.1 mm
r(min.)
1.5 mm
Basic load ratings : Cr
109 kN
Basic load ratings : C0r
75.3 kN
Fatigue load limit : Cu
3.90 kN
Limiting speeds(Grease lub.)
3200 min-1
Limiting speeds(Oil lub.)
4300 min-1
Load center spread : a
58.8 mm
Mounting dimensions
da(min.)
74 mm
da(max.)
- mm
Da(max.)
111.5 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
1.66 kg
