Koyo 5214 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

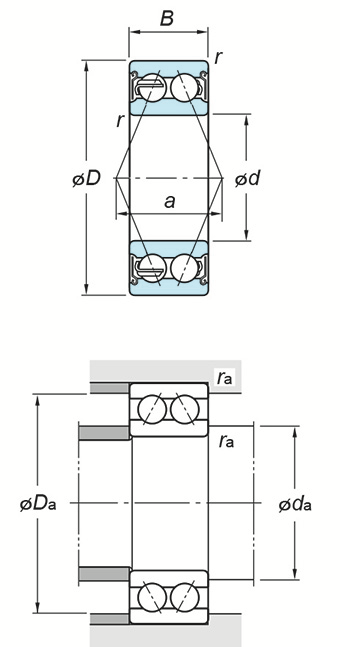

(Boundary dimensions ...etc)
d
70 mm
D
125 mm
B
39.7 mm
r(min.)
1.5 mm
Basic load ratings : Cr
95.4 kN
Basic load ratings : C0r
70.3 kN
Fatigue load limit : Cu
3.65 kN
Limiting speeds(Grease lub.)
3100 min-1
Limiting speeds(Oil lub.)
4100 min-1
Load center spread : a
61.4 mm
Mounting dimensions
da(min.)
79 mm
da(max.)
83.5 mm
Da(max.)
116.5 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
1.81 kg
