Koyo 525/522
(BRAND)：KOYO
(Availability)：In Stock
Specifications

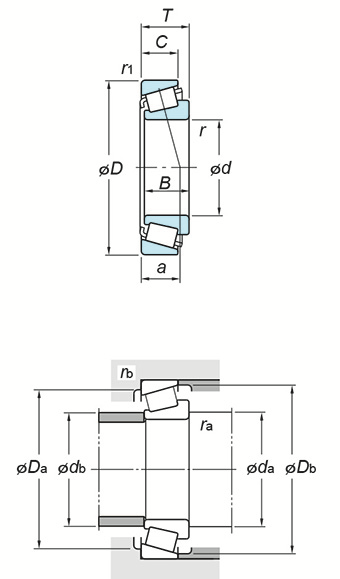

(Boundary dimensions ...etc)
d
38.100 mm
D
101.600 mm
T
34.925 mm
B
36.068 mm
C
26.988 mm
r(min.)
3.6 mm
r1(min.)
3.2 mm
Basic load ratings : Cr
164 kN
Basic load ratings : C0r
159 kN
Fatigue load limit : Cu
24.8 kN
Limiting speeds(Grease lub.)
4000 min-1
Limiting speeds(Oil lub.)
5300 min-1
Load center spread : a
22.2 mm
Constant :e
0.29
Axial load factors : Y1
2.10
Axial load factors : Y0
1.16
Mounting dimensions
da
54.0 mm
db
48.0 mm
Da
89.0 mm
Db
95.0 mm
ra(max.)
3.6 mm
rb(max.)
3.2 mm
Refer.
(Refer.)Mass
1.461 kg
