Koyo 5304 2RS
(BRAND)：KOYO
(Availability)：In Stock
Specifications

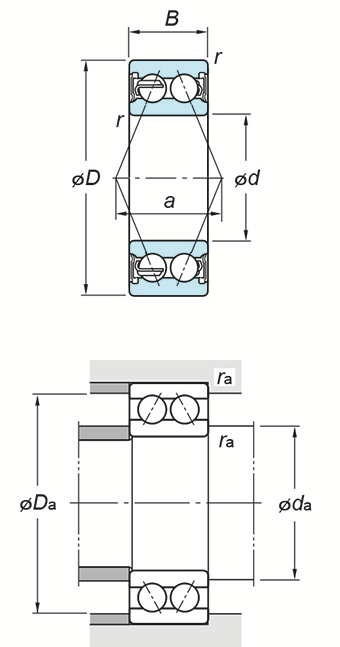

(Boundary dimensions ...etc)
d
20 mm
D
52 mm
B
22.2 mm
r(min.)
1.1 mm
Basic load ratings : Cr
24.7 kN
Basic load ratings : C0r
12.8 kN
Fatigue load limit : Cu
0.660 kN
Limiting speeds(Grease lub.)
8300 min-1
Limiting speeds(Oil lub.)
11000 min-1
Load center spread : a
25.9 mm
Mounting dimensions
da(min.)
27 mm
da(max.)
28.3 mm
Da(max.)
45 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.230 kg
