Koyo 5305 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

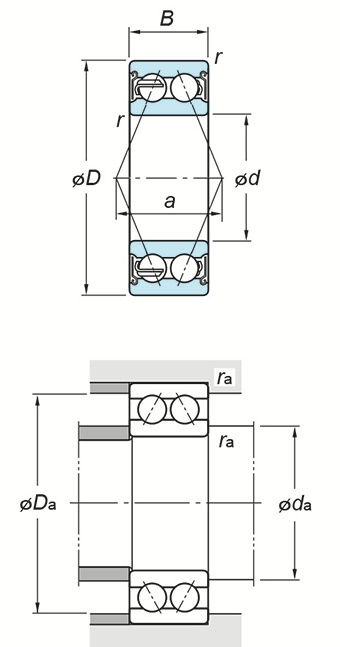

(Boundary dimensions ...etc)
d
25 mm
D
62 mm
B
25.4 mm
r(min.)
1.1 mm
Basic load ratings : Cr
34.3 kN
Basic load ratings : C0r
18.5 kN
Fatigue load limit : Cu
0.960 kN
Limiting speeds(Grease lub.)
6900 min-1
Limiting speeds(Oil lub.)
9200 min-1
Load center spread : a
31.1 mm
Mounting dimensions
da(min.)
32 mm
da(max.)
33.4 mm
Da(max.)
55 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.340 kg
