Koyo 5306 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

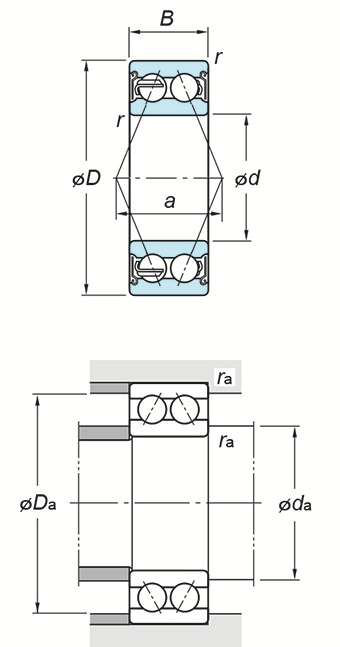

(Boundary dimensions ...etc)
d
30 mm
D
72 mm
B
30.2 mm
r(min.)
1.1 mm
Basic load ratings : Cr
42.9 kN
Basic load ratings : C0r
25.2 kN
Fatigue load limit : Cu
1.30 kN
Limiting speeds(Grease lub.)
5800 min-1
Limiting speeds(Oil lub.)
7700 min-1
Load center spread : a
36.2 mm
Mounting dimensions
da(min.)
37 mm
da(max.)
41.3 mm
Da(max.)
65 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.510 kg
