Koyo 5307 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

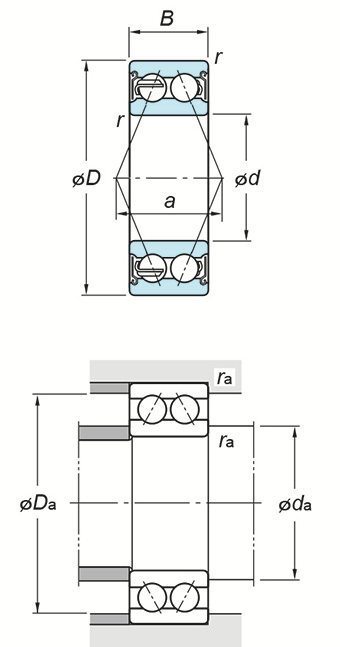

(Boundary dimensions ...etc)
d
35 mm
D
80 mm
B
34.9 mm
r(min.)
1.5 mm
Basic load ratings : Cr
57.6 kN
Basic load ratings : C0r
32.8 kN
Fatigue load limit : Cu
1.70 kN
Limiting speeds(Grease lub.)
5100 min-1
Limiting speeds(Oil lub.)
6800 min-1
Load center spread : a
41.0 mm
Mounting dimensions
da(min.)
44 mm
da(max.)
45.5 mm
Da(max.)
71.5 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
0.790 kg
