Koyo 5309 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

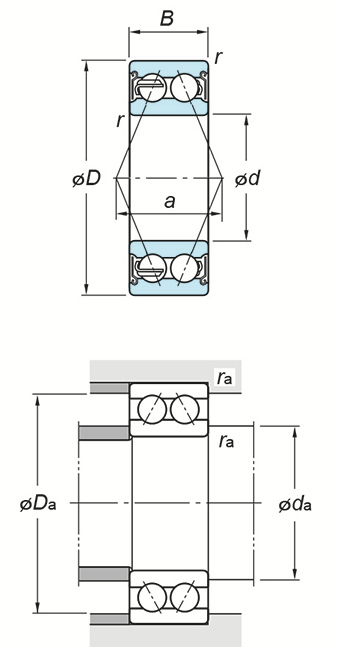

(Boundary dimensions ...etc)
d
45 mm
D
100 mm
B
39.7 mm
r(min.)
1.5 mm
Basic load ratings : Cr
86.1 kN
Basic load ratings : C0r
51.4 kN
Fatigue load limit : Cu
2.65 kN
Limiting speeds(Grease lub.)
4100 min-1
Limiting speeds(Oil lub.)
5500 min-1
Load center spread : a
51.0 mm
Mounting dimensions
da(min.)
54 mm
da(max.)
58.2 mm
Da(max.)
91.5 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
1.42 kg
