Koyo 5311 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

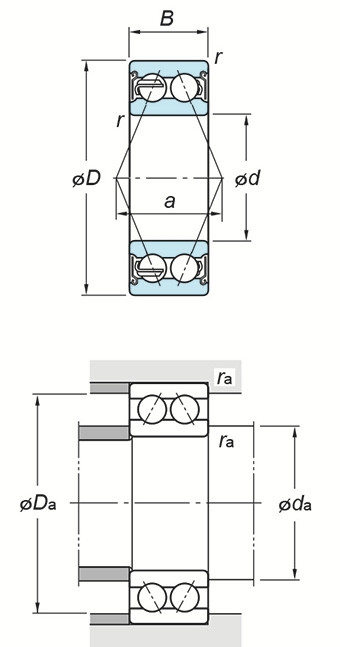

(Boundary dimensions ...etc)
d
55 mm
D
120 mm
B
49.2 mm
r(min.)
2 mm
Basic load ratings : Cr
120 kN
Basic load ratings : C0r
74.3 kN
Fatigue load limit : Cu
3.85 kN
Limiting speeds(Grease lub.)
3300 min-1
Limiting speeds(Oil lub.)
4500 min-1
Load center spread : a
61.6 mm
Mounting dimensions
da(min.)
65 mm
da(max.)
71.8 mm
Da(max.)
110 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
2.30 kg
