Koyo 5313
(BRAND)：KOYO
(Availability)：In Stock
Specifications

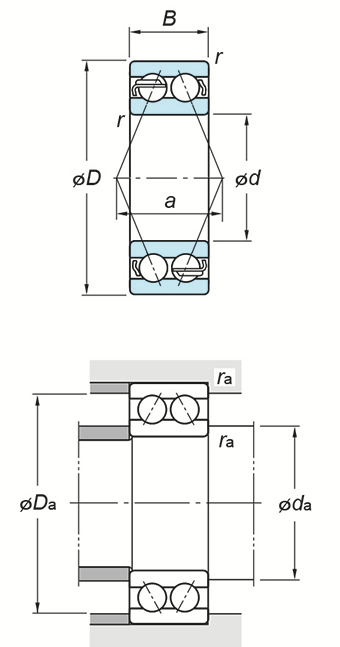

(Boundary dimensions ...etc)
d
65 mm
D
140 mm
B
58.7 mm
r(min.)
2.1 mm
Basic load ratings : Cr
178 kN
Basic load ratings : C0r
113 kN
Fatigue load limit : Cu
5.75 kN
Limiting speeds(Grease lub.)
2900 min-1
Limiting speeds(Oil lub.)
3900 min-1
Load center spread : a
70.9 mm
Mounting dimensions
da(min.)
77 mm
da(max.)
- mm
Da(max.)
128 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
3.91 kg
