Koyo 53204U
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

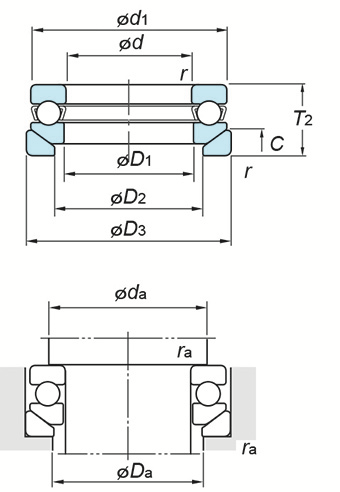

(Boundary dimensions ...etc)
d
20 mm
D
40 mm
T
17 mm
r(min.)
0.6 mm
Basic load ratings Ca
27.9 kN
Basic load ratings C0a
37.7 kN
Fatigue load limit : Cu
1.70 kN
Limiting speeds(Grease lub.)
3900 min-1
Limiting speeds(Oil lub.)
6000 min-1
d1(max.)
40 mm
D1(min.)
22 mm
D2
30 mm
D3
42 mm
A
- mm
R
- mm
C
5 mm
Mounting dimensions
da(min.)
32 mm
Da(max.)
28 mm
ra(max.)
0.6 mm
Refer.
(Refer.)Mass
0.100 kg
