Koyo 53210U
(BRAND)：KOYO
(Availability)：In Stock
Specifications

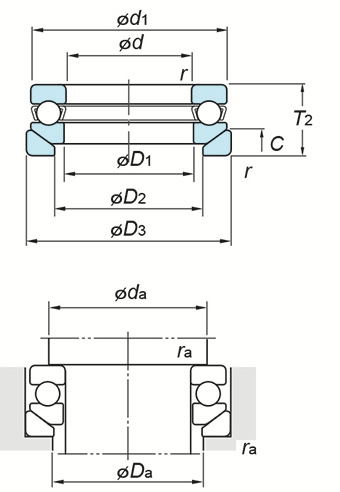

(Boundary dimensions ...etc)
d
50 mm
D
78 mm
T
26 mm
r(min.)
1 mm
Basic load ratings Ca
60.6 kN
Basic load ratings C0a
111 kN
Fatigue load limit : Cu
5.05 kN
Limiting speeds(Grease lub.)
2300 min-1
Limiting speeds(Oil lub.)
3600 min-1
d1(max.)
78 mm
D1(min.)
52 mm
D2
62 mm
D3
82 mm
A
- mm
R
- mm
C
7.5 mm
Mounting dimensions
da(min.)
67 mm
Da(max.)
61 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.480 kg
