Koyo 53214
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

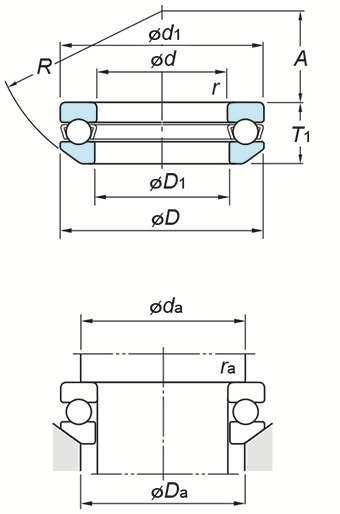

(Boundary dimensions ...etc)
d
70 mm
D
105 mm
T
28.8 mm
r(min.)
1 mm
Basic load ratings Ca
95.2 kN
Basic load ratings C0a
199 kN
Fatigue load limit : Cu
8.95 kN
Limiting speeds(Grease lub.)
1800 min-1
Limiting speeds(Oil lub.)
2800 min-1
d1(max.)
105 mm
D1(min.)
72 mm
D2
- mm
D3
- mm
A
38 mm
R
80 mm
C
- mm
Mounting dimensions
da(min.)
91 mm
Da(max.)
84 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.800 kg
