Koyo 53220U
(BRAND)：KOYO
(Availability)：In Stock
Specifications

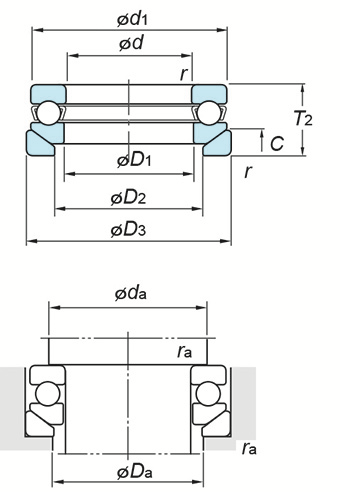

(Boundary dimensions ...etc)
d
100 mm
D
150 mm
T
45 mm
r(min.)
1.1 mm
Basic load ratings Ca
183 kN
Basic load ratings C0a
410 kN
Fatigue load limit : Cu
16.6 kN
Limiting speeds(Grease lub.)
1200 min-1
Limiting speeds(Oil lub.)
1900 min-1
d1(max.)
150 mm
D1(min.)
103 mm
D2
125 mm
D3
155 mm
A
- mm
R
- mm
C
14 mm
Mounting dimensions
da(min.)
130 mm
Da(max.)
120 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
2.84 kg
