Koyo 53224U
(BRAND)：KOYO
(Availability)：In Stock
Specifications

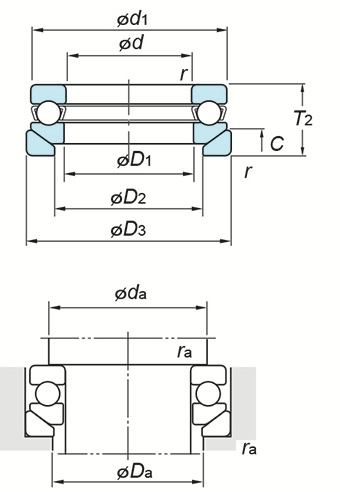

(Boundary dimensions ...etc)
d
120 mm
D
170 mm
T
46 mm
r(min.)
1.1 mm
Basic load ratings Ca
192 kN
Basic load ratings C0a
470 kN
Fatigue load limit : Cu
17.7 kN
Limiting speeds(Grease lub.)
1100 min-1
Limiting speeds(Oil lub.)
1700 min-1
d1(max.)
170 mm
D1(min.)
123 mm
D2
145 mm
D3
175 mm
A
- mm
R
- mm
C
15 mm
Mounting dimensions
da(min.)
150 mm
Da(max.)
140 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
3.46 kg
