Koyo 53228U
(BRAND)：KOYO
(Availability)：In Stock

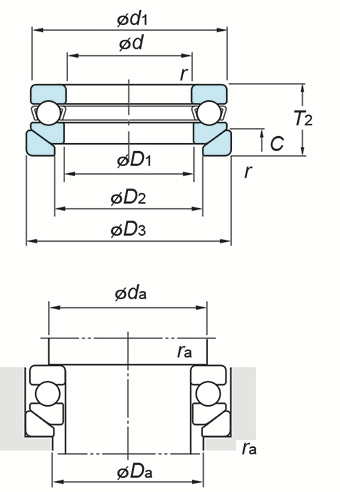

Specifications
(Boundary dimensions ...etc)
d
140 mm
D
200 mm
T
55 mm
r(min.)
1.5 mm
Basic load ratings Ca
234 kN
Basic load ratings C0a
650 kN
Fatigue load limit : Cu
19.6 kN
Limiting speeds(Grease lub.)
940 min-1
Limiting speeds(Oil lub.)
1450 min-1
d1(max.)
197 mm
D1(min.)
143 mm
D2
170 mm
D3
210 mm
A
- mm
R
- mm
C
17 mm
Mounting dimensions
da(min.)
176 mm
Da(max.)
164 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
5.89 kg
