(BRAND):KOYO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

53230

Specifications

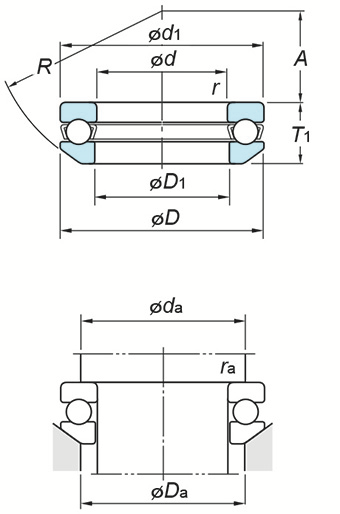

(Boundary dimensions ...etc)

d 150 mm
D 215 mm
T 53.3 mm
r(min.) 1.5 mm
Basic load ratings Ca 266 kN
Basic load ratings C0a 652 kN
Fatigue load limit : Cu 21.8 kN
Limiting speeds(Grease lub.) 840 min-1
Limiting speeds(Oil lub.) 1300 min-1
d1(max.) 212 mm
D1(min.) 153 mm
D2 - mm
D3 - mm
A 79 mm
R 160 mm
C - mm

Mounting dimensions

da(min.) 189 mm
Da(max.) 176 mm
ra(max.) 1.5 mm

Refer.

(Refer.)Mass 5.45 kg
