Koyo 53309
(BRAND)：KOYO
(Availability)：In Stock
Specifications

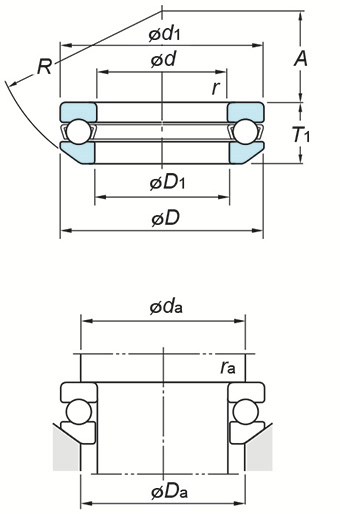

(Boundary dimensions ...etc)
d
45 mm
D
85 mm
T
30.1 mm
r(min.)
1 mm
Basic load ratings Ca
100 kN
Basic load ratings C0a
163 kN
Fatigue load limit : Cu
7.40 kN
Limiting speeds(Grease lub.)
1900 min-1
Limiting speeds(Oil lub.)
3000 min-1
d1(max.)
85 mm
D1(min.)
47 mm
D2
- mm
D3
- mm
A
25 mm
R
64 mm
C
- mm
Mounting dimensions
da(min.)
69 mm
Da(max.)
61 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.680 kg
