Koyo 53310
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

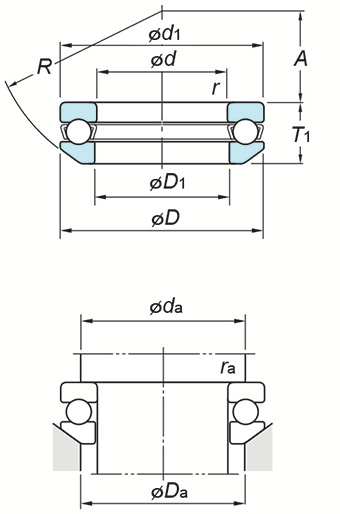

(Boundary dimensions ...etc)
d
50 mm
D
95 mm
T
34.3 mm
r(min.)
1.1 mm
Basic load ratings Ca
121 kN
Basic load ratings C0a
202 kN
Fatigue load limit : Cu
9.10 kN
Limiting speeds(Grease lub.)
1800 min-1
Limiting speeds(Oil lub.)
2700 min-1
d1(max.)
95 mm
D1(min.)
52 mm
D2
- mm
D3
- mm
A
28 mm
R
72 mm
C
- mm
Mounting dimensions
da(min.)
77 mm
Da(max.)
68 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
1.01 kg
