Koyo 53311
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

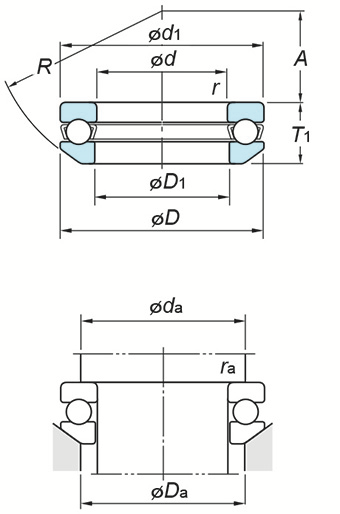

(Boundary dimensions ...etc)
d
55 mm
D
105 mm
T
39.3 mm
r(min.)
1.1 mm
Basic load ratings Ca
149 kN
Basic load ratings C0a
246 kN
Fatigue load limit : Cu
11.1 kN
Limiting speeds(Grease lub.)
1600 min-1
Limiting speeds(Oil lub.)
2400 min-1
d1(max.)
105 mm
D1(min.)
57 mm
D2
- mm
D3
- mm
A
30 mm
R
80 mm
C
- mm
Mounting dimensions
da(min.)
85 mm
Da(max.)
75 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
1.41 kg
