Koyo 53314U
(BRAND)：KOYO
(Availability)：In Stock
Specifications

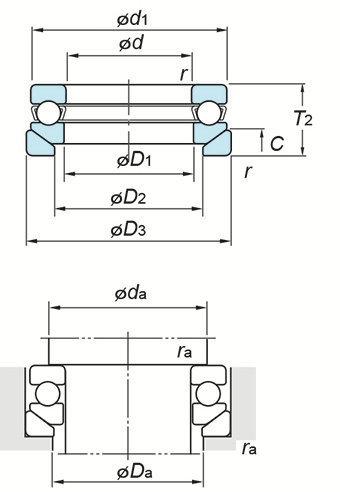

(Boundary dimensions ...etc)
d
70 mm
D
125 mm
T
48 mm
r(min.)
1.1 mm
Basic load ratings Ca
167 kN
Basic load ratings C0a
291 kN
Fatigue load limit : Cu
13.1 kN
Limiting speeds(Grease lub.)
1300 min-1
Limiting speeds(Oil lub.)
2000 min-1
d1(max.)
125 mm
D1(min.)
72 mm
D2
98 mm
D3
130 mm
A
- mm
R
- mm
C
13 mm
Mounting dimensions
da(min.)
103 mm
Da(max.)
92 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
2.56 kg
